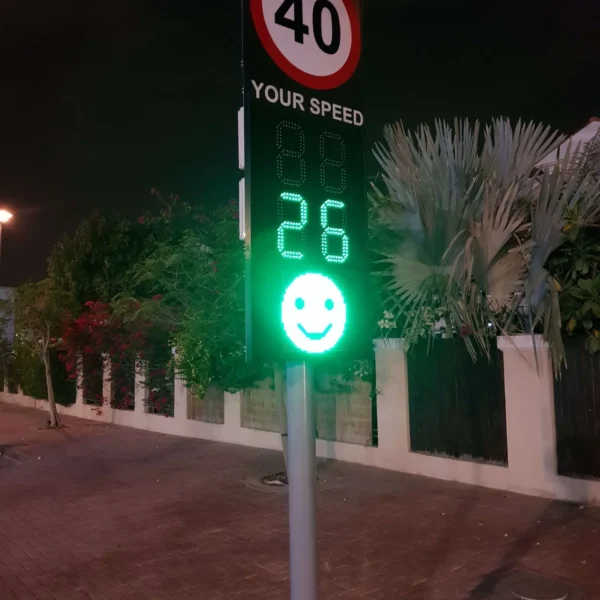

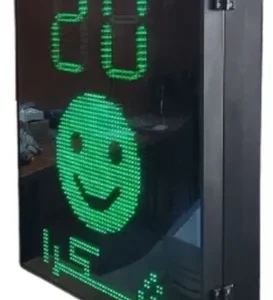

Solar Smart Speed Radar Display with Periodic Message (Arabic and English) and with Flash Light

Description

Solar Smart Speed Radar Display with Periodic Message (Arabic and English) and with Flash Light

Model Number: SDMF70189

Platform,

MTP Solar Smart Speed Radar Displays are valuable tools for promoting road safety by raising awareness of speed limits and encouraging responsible driving behavior among motorists.

Their effectiveness lies in providing real-time feedback and reinforcing the importance of adhering to posted speed limits for improved road safety.

Explanation,

When the vehicle drives into the radar detection area (about 100 meters in the front of radar sign), the microwave radar will automatically detect the vehicle’s speed.  If the driver did not reduce speed and reach the 60-meter front of the radar sign, then the Smart radar will flash light for a warning to the driver. Which Effectively reduces road traffic accidents caused by high-speed driving.
Speed feedback device has a significant eye-catching induction driving function, and can significantly reduce traffic accidents, to achieve safety guidance.

Advantages,

Solar Your Speed Radar Signs warn drivers that they are entering a speed zone or going over the speed limit.

Check out MTP’s robust solutions, and feel free to contact us if you have any questions on how we can make your streets safer!

Features,

• Uses Solar Energy as a source of electricity
• Display effects include active flash & passive reflection
• Inside the key switch control, if turn on, all systems will function (solar panel, LED light, charging), and the opposite function for turn off.

Components

Flash Light,

It is included 4 pcs high power LEDs with the power of 3 watts for each one, Power voltage for LED light is 12 volt DC.
Its Light color is Day Light.
So a total of 20 cables from two arms come to the controller box.

LED,

The total numbers of LEDs Green Digit Number: 196 pcs LED + Green Emoji Face: 2048 pcs LED + Green Message Arabic & English: 1024 pcs LED + RED Digit Number: 196 pcs LED + RED Emoji Face: 2048 pcs LED



Face and message Display Module(MTP Brand)

LED’s Module is made by fiberglass electronic printed board with the size of 16*32 cm has 512 pixels,

Distance between each pixel is 10mm.

Its rear is covered by green isolated coating and front with black isolation coating in for prevent of any water and dust.

Battery,

Sealed Lead Acid batteries of 3×12v *18Ah, total 54Ah, having desired life of 5 years.



Solar Panel,

The solar panel is 50W, 18v 5.5A, with an efficiency of %16.



Mechanical Specification,

• Body material: Composite and Aluminum Sheet
• Dimension: 70*189*15.5 cm(with sign)
• Weight: 45KG
• 100 Watts, Life time more than 20 Years
• Battery: Internal 12 volt, 54 Ah, sealed lead acid
• LED Quantity:Green Digit Number: 196 pcs LEDGreen Emoji Face: 2048 pcs LED

  Green Message Arabic & English: 1024 pcs LED

  RED Digit Number: 196 pcs LED

  RED Emoji Face: 2048 pcs LED

  RED Message Arabic & English: 1024 pcs LED

• Light luminous: 8000 mcd
• Display model: 2 digits with 7 segment LED board and Face
• Emoji Face Display:64*32 pixel SMD two color
• Message Display: 64*16 pixel SMD two color Arabic and English message
• Frame: Aluminum profile with special design
• Color quality: Electrostatic Powder Coating
• Color: Black Matte
• Front sheet material: Plexiglas with special finishing to prevent skylight reflection
• Installation stand: Special U Channel as UAE Traffic Sign standard

Radar,

Special device operating CW Doppler device operating in the K-Band (24GHz), Radar Range 100-200m



Spare Parts,

5-inch Hose Clamp

3-inch Stainless Steel Clamp

Environmentally Friendly,

This facility suggests that the MTP Products is an environmentally friendly and green product.

Where you install,

It is fixed above the road, the radar fixed position should be radar Cavity oblique angle alignment to the car location.

Useful Points,
