Description

MTP Solar Smart Speed Radar Display with Flash Light, Simple Emoji Face, and Speed Limit Sign-Data Sheet



Model No. SSF60173

MTP Product Solar Smart Speed Radar Display with Flash Light, Simple Emoji Face, and Speed Limit Sign is included Two Seven Segment, Flash Light, Simple Emoji Face, Speed Limit Sign.

Speed Limit can be set customize manually by Push Button Switch which is embedded on the rear of the Sign.

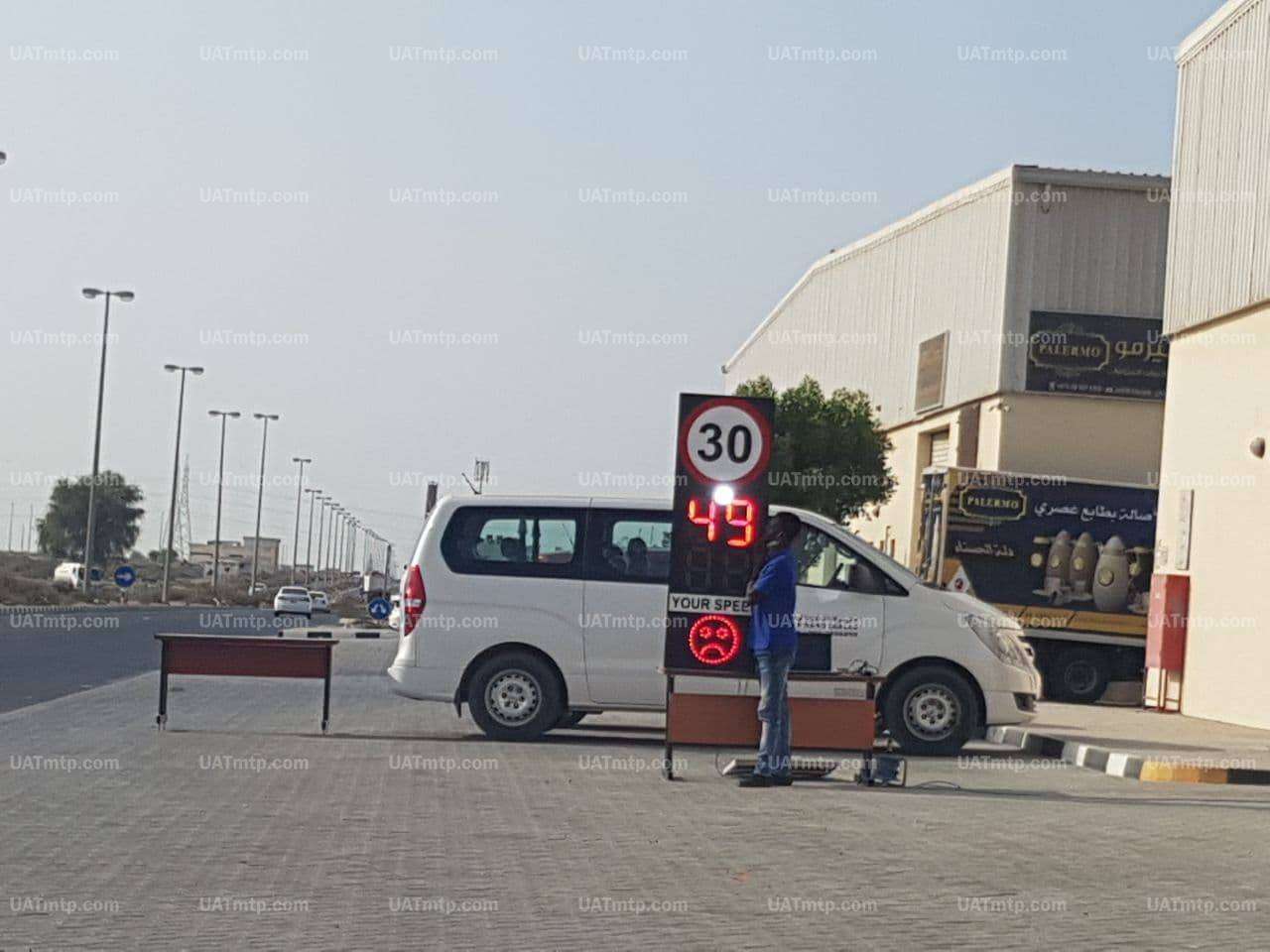

In addition, it notifies the driver of vehicle speed, it shows a Green display on the radar which is included vehicle speed and a happy emoji face, and shows a Red display on smart radar which is showing vehicle speed and sad emoji face.

Platform,

MTP Solar Smart Speed Radar Displays are valuable tools for promoting road safety by raising awareness of speed limits and encouraging responsible driving behavior among motorists.

Their effectiveness lies in providing real-time feedback and reinforcing the importance of adhering to posted speed limits for improved road safety.

Explanation,

When the vehicle drives into the radar detection area (about 100 meters in the front of radar sign), the microwave radar will automatically detect the vehicle’s speed.  If the driver did not reduce speed and reach the 60-meter front of the radar sign, then the Smart radar will flash light for a warning to the driver. Which Effectively reduces road traffic accidents caused by high-speed driving.
Speed feedback device has a significant eye-catching induction driving function, and can significantly reduce traffic accidents, to achieve safety guidance.

Advantages,

Solar Your Speed Radar Signs warn drivers that they are entering a speed zone or going over the speed limit.

Check out MTP’s robust solutions, and feel free to contact us if you have any questions on how we can make your streets safer!

Features,

• Uses Solar Energy as a source of electricity
• Display effects include active flash & passive reflection
• Inside the key switch control, if turn on, all systems will function (solar panel, LED light, charging), and the opposite function for turn off.

Components

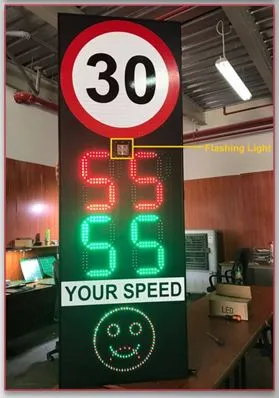

Flash Light,

It is included 4 pcs high power LEDs with the power of 3 watts for each one, Power voltage for LED light is 12 volt DC.
Its Light color is Day Light.
So a total of 20 cables from two arms come to the controller box.



LED,

The total numbers of LEDs in one module are equal to: Green Digit Number: 196 pcs LED + Green Emoji Face: 60 pcs LED+ RED Digit Number: 196 pcs LED

+ RED Emoji Face: 55 pcs LED

Battery,

Sealed Lead Acid batteries of 12v ,34Ah having desired life of 5 years.



Solar Panel,

The solar panel is 60W, 18v 5.5A, with an efficiency of %16.

Mechanical Specification,

• Body material: Composite and Aluminum Sheet
• Dimension: 60*173*5 cm(with sign)
• Weight: 15KG
• 60 Watts, Life time more than 20 Years
• Battery: Internal 12 volt, 34 Ah, sealed lead acid
• LED Quantity:Green Digit Number: 196 pcs LEDGreen Emoji Face: 60 pcs LEDRED Digit Number: 196 pcs LED

  RED Emoji Face: 55 pcs LED

• Light luminous: 8000 mcd
• Display model: 2 digits with 7 segment LED board and Face
• Frame: Aluminum profile with special design
• Frame size: 5*5*0.2cm
• Color quality: Electrostatic Powder Coating
• Color: Black Matte
• Front sheet material: Plexiglas with special finishing to prevent skylight reflection
• Installation stand: Special U Channel as UAE Traffic Sign standard

Radar,

Special device operating (24GHz), Radar Range: 100-200m

Spare Parts,

5-inch Hose Clamp

3-inch Stainless Steel Clamp

Environmentally Friendly,

This facility suggests that the MTP Products is an environmentally friendly and green product.

Where to install,

It is fixed above the road, the radar fixed position should be radar Cavity oblique angle alignment to the car location.

Useful Points,
